Emergency Ballasts - UP

Dimensions

UP160
Height:
16-3/8"
Width:
3"

Depth:

3"
UP80-2
Height:
13"
Width:
2-1/2"
Depth:
1-1/2"
All Others
Height:
9-1/2"
Width:
2-3/8"
Depth:
1-1/2"

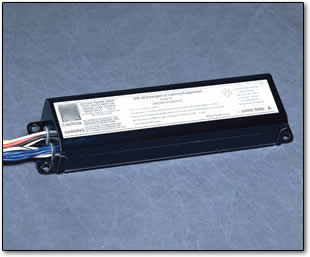

An affordable alternative to conventional emergency lighting, the UP Series is a fluorescent ballast, which enhances existing AC fixtures by illuminating 1 or 2 lamps during a power failure.


Series Features

  • Solid State System
  • Dual-Voltage Transformer for
    120/277 VAC Operation
  • Maximum Input Rating
    120VAC 60 Hz 4.0 Watts
    277VAC 60 Hz 4.0 Watts
  • For Use on Single or Double Lamps
  • Illuminates Rapid Start, Instant Start, High Output, Slimline, Circline, U-Shaped, or Compact Lamps
  • Sealed Nickel Cadmium Battery
  • Maintenance Free
  • Converts Fluorescent Fixtures to Emergency Lighting
  • Provides 1.5 Hour Illumination for Single or Double Lamps
  • Completely Self-Contained Inside or Above Lighting Fixture
  • Compact Steel Housing
  • Convenient Length Lead Wires
  • Test Switch
  • RED (Power On) Indicator
  • UL Listed
  • Operating Range: 50° - 140° F
  • Warranty: 2-5 Years

Linear Lamps

Lamps Operated

Qty.

UP40
500 Lumens

UP80
700 Lumens

UP80-2
1300 Lumens

UP160
3000 Lumens

UP20
650 Lumens

UP26QD
650 Lumens

UP42
650 Lumens

2'-4' Rapid, Instant Energy Saving, T8 and T12
1

X

X

X

X







2'-4' Rapid, Instant Energy Saving, T8 and T12, HO & VHO
2



X**

X**

X**







5'-8' Rapid, Instant Energy Saving, T8 and T12, HO & VHO
1



X

X

X







20W-40W Circline
1

X

X

X

X







20W-40W Circline
2



X

X

X








Compact Lamps

Lamps Operated

Qty.

UP40
500 Lumens

UP80
700 Lumens

UP80-2
1300 Lumens

UP160
3000 Lumens

UP20
650 Lumens

UP26QD
650 Lumens

UP42
650 Lumens

5-, 7-, 9- & 13-Watt Twin Tube (2 pin)
1









X





9W–13W USA Quad Tube
(2 pin)
1









X





18W-26W Quad Tube (2 pin)*
1 or 2











X



10W-26W Quad Tube (4 pin)
1













X

18W-39W Long Compact
1













X

40-Watt Biax
1



X

X

X







50-Watt Biax
1





X









55-Watt Biax
1





X









18W-26W Triple Tube (4 pin)
1 or 2













X

32W-42W Triple Tube (4 pin)
1













X


*22- & 28-Watt 15 mm lamps are not compatible.
**Note: Two-lamp emergency is not possible with all electronic ballasts. Consult customer service for specific ballast compatibility.

Factory Options

-TMK Top Mount Kit
-FC Flex Cord (Per Ft.)
-RTSK Remote Test Switch Kit





Ordering Information

UP40
-TMK
Series
Options
