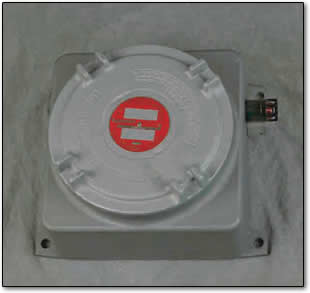

Hazardous Area Emergency Lights - SEXP

Dimensions

Height: 12.0"
Width: 15.0"
Depth: 8.8"

The SEXP Series is designed for use in Class I, Division I hazardous areas. Lighting fixtures and exit fixtures are available for mounting directly to the housing or can be remotely mounted.

Series Features



NEC ENVIRONMENT RATINGS

  • Meets or Exceeds UL Specifications for Use in the Following Areas:
    Class I, Division I, Groups C & D
    Class II, Division I, Groups E, F & G
    Class III
  • Integrated Solid State System
  • Controlled, Automatic Charger
  • Dual-Voltage Transformer for
    120/277 VAC Operation
  • Par-36 Sealed Beam Lamps
  • STD Lamps - See Unit Information
  • Sealed Nickel Cadmium Battery (N)
  • 6 or 12 Volt Operation
  • Maintenance Free
  • Completely Self-Contained Operation
  • Heavy Cast, Copper-Free Aluminum Housing
  • Sealed Test Switch
  • Power On Indicator
  • UL Listed Enclosures and Fixtures

Unit Information ~SEXP

Model
Number

Volt

Watts per Hour

Replacement
Battery

1.5

2

3
SE68XP
6

25

18

10
(1) N67
SE128XP
12

50

37

20
(2) N67

6-Volt Hazardous Area Emergency Lighting Power Units Complete with Batteries and Chargers

Single-head unit with
20-watt halogen lamp

Single exit fixture with
20-watt halogen lamp

Double-head unit with
10-watt halogen lamp

Double-head unit with
20-watt halogen lamp

Single-head & single exit
with 10-watt halogen lamp

Single-head & single exit
with 20-watt halogen lamp

For power units with lighting heads and/or exit fixtures mounted directly to the housing, choose from the models listed above. These units are supplied with a swivel elbow for each lighting fixture. Conduit is to be supplied by the installer.
