Edge - Lit LED Exits - GXL

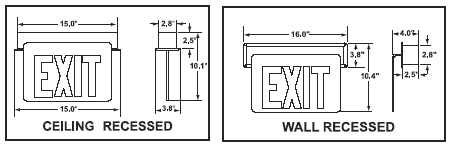

Dimensions

Recessed Signs

Rough In Opening Size:
2.75" X 15.38"


Series Features

  • 120 VAC Operation Std.
  • Maximum Input Rating (120 or 277 VAC) 1.7 Watts
  • Light Emitting Diodes ~ 25+ Year Life
  • Illuminates with Uniform Color and Brightness
  • Architectural Grade
  • Clean, Contemporary Styling
  • Ceiling or Wall Mount
  • Recessed or Surface Housing
  • Recessed Includes (4) Adjustable Mtg. Tabs
  • Etched, Clear Acrylic, Edge-Lit Panel
  • Silk Screened Letters
  • Steel Housing and Trim Plate
  • White Powder Coat Finish
  • UL Listed

Additional Emergency Unit Features

  • Dual-Voltage Transformer for 120/277 VAC Operation
  • Integrated Solid State System
  • Constant Current, Automatic Charger
  • Lock Out (Automatic Battery Connect)
  • Low-Voltage Battery Cutoff
  • Brownout Sensitivity
  • Maximum Input Rating
    (120 or 277 VAC) 1.7 Watts
  • Light Emitting Diodes
  • Initial Increased LED Brightness Level in Emergency Mode
  • Sealed Nickel Cadmium Battery
  • 10-Year Battery Warranty
  • Maintenance-Free
  • 3+ Hours Illumination in Emergency Mode
  • Test Switch
  • Amber (Power On) Indicator

Factory Options

-PA Plenum Construction
-2C (2) Independent AC Circuits
-E End Mount
-UNMTG Universal Mounting Bracket





Specify Chevron Configuration on all Edge-Lit Signs

Blank = No Chevron



CR = Chevron Right

>

CL = Chevron Left <
CD = Dual Chevrons < >
CRCL = Chevron Right/
Chevron Left
(Double Face Only)
Double Face Only. One Arrow per face


Ordering Information

GXL
Series
1
# Faces
W
Trim Color
R
Letter Color
W
Bkgrnd. Color
C
Fixture Type
R
Mounting Type
-PA
Options
GXLA ~ AC
GXLS ~ Emer.
1
2
White*
BR
ass

Matte Chrome
Black

Red
Green

Blank ~ None
W ~ White
MB ~ Mirrored
Ceiling
Wall
Recessed
S
urface
Factory Options
* Standard
† Std. Background color of SGL face sign is clear (blank). For non-std. single & all double face signs indicate W for White background or MB for mirrored background.
